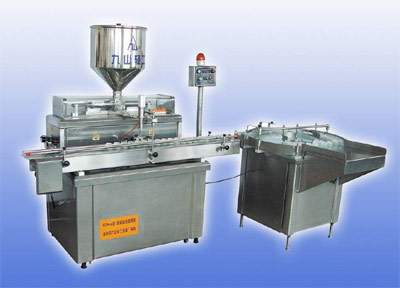

ZSGJ-B500 Automatic filling machine
Description:

This machine uses the advanced photoelectric control know-how, with the system runs stably and reliably, can quickly and accurately carries out the automatic ratio filling and is the best choice for the automatic cream and frostlike materials production of the daily chemicals, food, medicine etc. trades.
It is reasonably structured and brand-new designed and features:
* Use a rotating valve for control, dual gauging jars work in turn to raise the productivity.
* The conveyer belt is equipped with an imported braking motor and stops conveying at filling, filling starts once there is a bottle and stops without bottle.
* Of the automatic filling-count function.
* Non-material hint function is set with the hopper.

Specifications:
Capacity 30-60 ops/min
Filling Range 100-500ml
Working pressure 0.3-0.5Mpa
Working voltage 220V/50Hz
Filling accuracy ¡À1-2ml
Air consumption 0.1 litfe/min
External dimension L¡ÁW¡ÁH£º2500¡Á1100¡Á1800£¨mm£©
