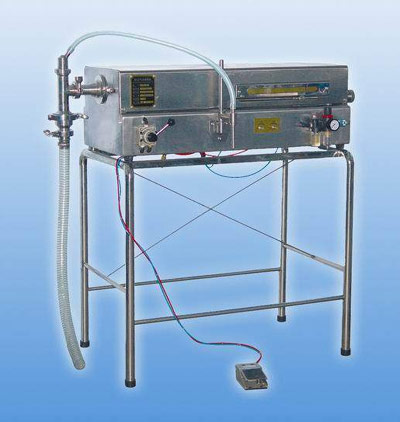

Horizontal self-suction pneumatic liquid filling machine
Description:

It uses the piston measuring mode and compressed air as the power to work without any power supply and can work at an explosive or combustible place by just stepping on the pedal. The filling range can be adjusted lightly, safe, reliable and easily used. All the portions contacted with the material are made of stainless steel and PTEE.

Suitable for shampoo, shower gel, liquid soap ,glue water, gel etc.

Specifications:
Model WQG-600 WQG-1000
Air consumption 0.035m3/·Ö
Filling range 50-600ml 100-1000ml
Filling accuracy ¡À1ml
Capability 20-45bot/min
Net weight 50kg
Dimensions 1150¡Á520¡Á400£¨mm£©
